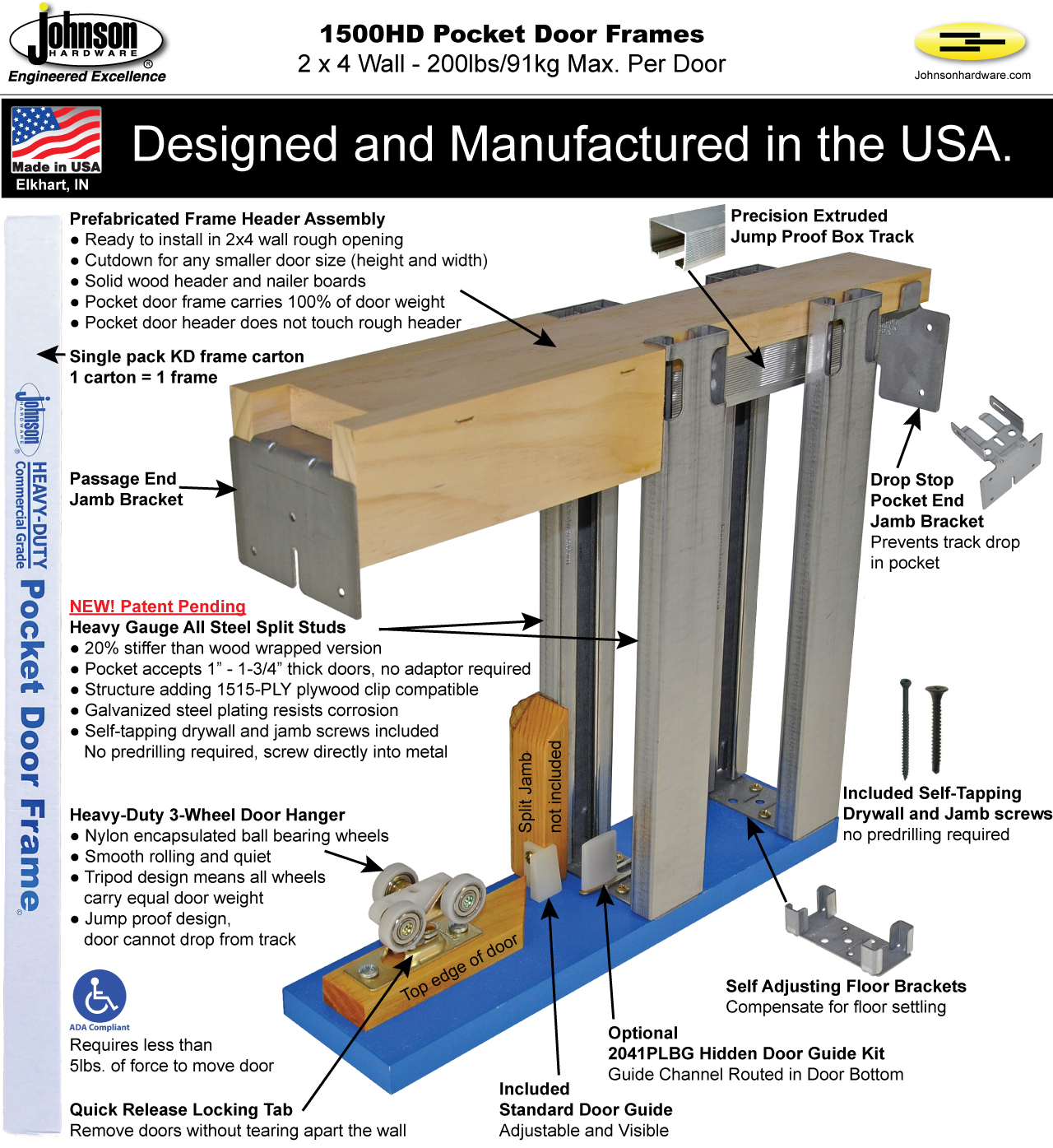

1500HD Series Heavy-Duty Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 60" [1524mm] x 108" [2743mm] Max. Door Size

  • 1" [25mm] - 1-3/4 [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close Compatible W/ Optional Soft-Close Kit

The 1500HD Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. Ball bearing hanger wheels provide feather-touch door operation making the 1500HD one of the smoothest rolling pocket door installations available. The 1500 is designed to be quickly installed into prepared 2 x 4 timber frame stud walls however, the 1500 can also be adapted for use in various wall thicknesses and with various wall materials and structures. The 1500 Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accomidate custom size doors.

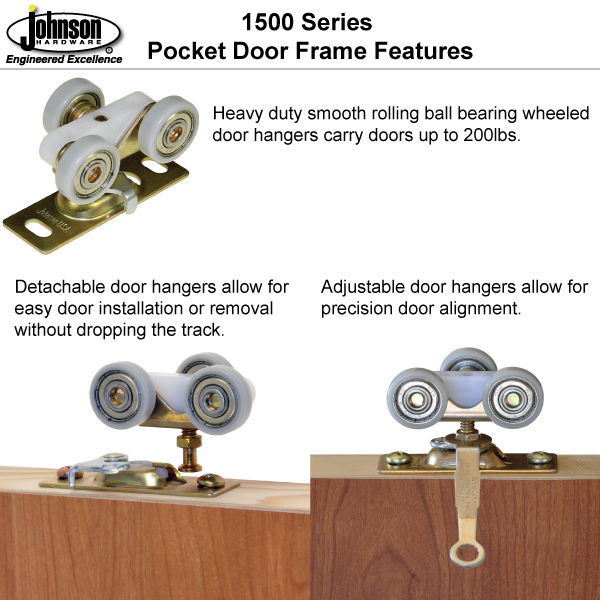

Heavy Duty Door Hangers

Jump Proof Box Track

Pocket Door Guiding Options

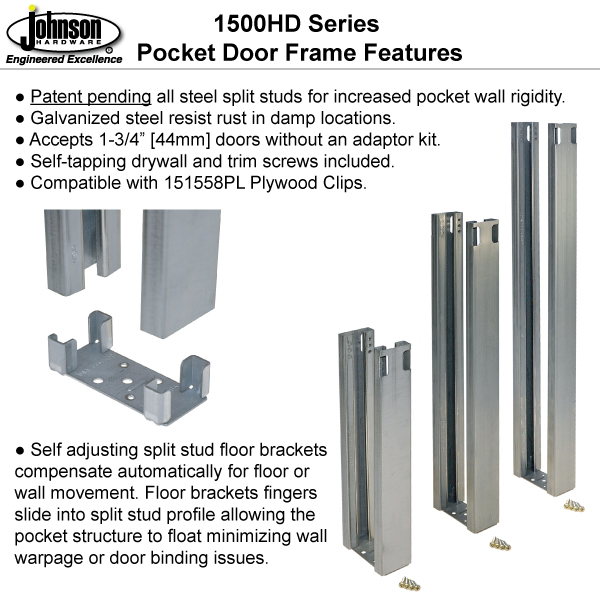

Steel Wrapped Split Studs

Drop Stop Jamb Bracket

2 x 4 Stud Wall Installation

Product Guarantee

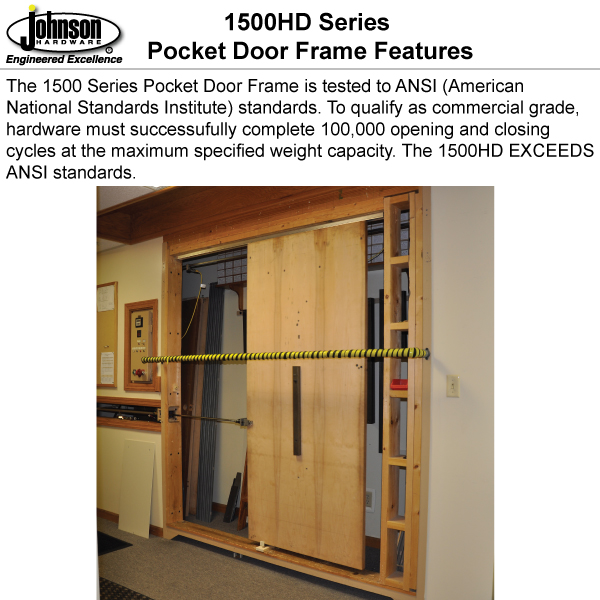

Tested Quality

1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 1500HD Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. Ball bearing hanger wheels provide feather-touch door operation making the 1500HD one of the smoothest rolling pocket door installations available. The 1500 is designed to be quickly installed into prepared 2 x 4 timber frame stud walls however, the 1500 can also be adapted for use in various wall thicknesses and with various wall materials and structures. The 1500 Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accomidate custom size doors.

Heavy Duty Door Hangers

Jump Proof Box Track

Pocket Door Guiding Options

Steel Wrapped Split Studs

Drop Stop Jamb Bracket

2 x 4 Stud Wall Installation

Product Guarantee

Tested Quality

1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

1500HD Series Instalation Instructions

1500 Series Video

Frame Installation

Converging Door

1500HD Series Quick Reference Drawings

Single Door Rough-in

Converging Door Rough-in

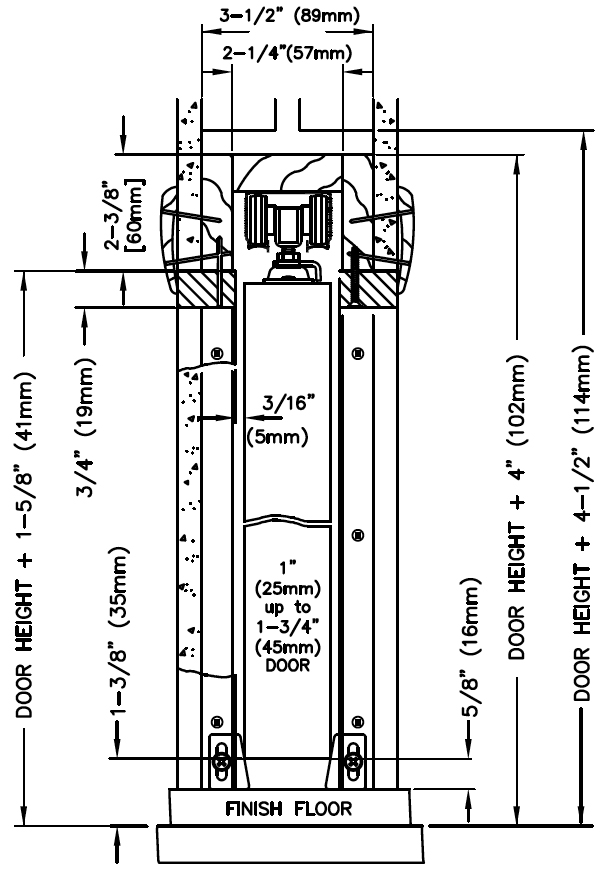

Opening Height Dimensions

1-3/4" [44mm] Door Adaptor Kit

1555PPK3 Converging Door Kit

1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Pocket Door Video

Frame Installation

Converging Door

Pocket Door Lock

Track Cutdown

1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Door Thickness 1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm] (*1575PPK3 Adaptor Kit Required)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152068HD View Contents

24" (2'- 0")
[609mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
152468HD View Contents

28" (2'- 4")
[711mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
152668HD View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
152868HD View Contents

32" (2'- 8")
[813mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
153068HD View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
153668PF View Contents

42" (3'- 6")
[1067mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154068PF View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154668PF View Contents

54" (4'- 6")
[1372mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155068PF View Contents

60" (5'- 0")
[1524mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152070PF View Contents

24" (2'- 0")
[609mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152470PF View Contents

28" (2'- 4")
[711mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152670PF View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152870PF View Contents

32" (2'- 8")
[813mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153070PF View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153670PF View Contents

42" (3'- 6")
[1067mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154070PF View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154670PF View Contents

54" (4'- 6")
[1372mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155070PF View Contents

60" (5'- 0")
[1524mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152080PF View Contents

24" (2'- 0")
[609mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152480PF View Contents

28" (2'- 4")
[711mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152680PF View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152880PF View Contents

32" (2'- 8")
[813mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153080PF View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153680PF View Contents

42" (3'- 6")
[1067mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154080PF View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154680PF View Contents

54" (4'- 6")
[1372mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155080PF View Contents

60" (5'- 0")
[1524mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

108" (9'-0") [2743mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152090PF View Contents

24" (2'- 0")
[609mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152490PF View Contents

28" (2'- 4")
[711mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152690PF View Contents

30" (2'- 6")
[762mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152890PF View Contents

32" (2'- 8")
[813mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153090PF View Contents

36" (3'- 0")
[914mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153690PF View Contents

42" (3'- 6")
[1067mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154090PF View Contents

48" (4'- 0")
[1219mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154690PF View Contents

54" (4'- 6")
[1372mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155090PF View Contents

60" (5'- 0")
[1524mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Door Thickness 1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm] (*1575PPK3 Adaptor Kit Required)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
