200MP Tri-Pass Pocket Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 11-1/4" [286mm] Min. Wall Structure Thickness

  • 283" (25' - 1/2") [7188mm] Max. Opening Width*

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

  • *6-Door Configuration

The 200MP is designed to carry heavy solid core doors in both residential or commercial applications where quality counts and trouble-free long life operation is a necessity. The heavy gauge 6063T6 I-beam aluminum track is extruded to the most precise specification, and the fully adjustable jump proof 4-wheel ball bearing hangers glide effortlessly with feather touch operation. Heavy gauge steel components are zinc trivalent plated for a quality appearance.

200MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200MP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

The 200MP is designed to carry heavy solid core doors in both residential or commercial applications where quality counts and trouble-free long life operation is a necessity. The heavy gauge 6063T6 I-beam aluminum track is extruded to the most precise specification, and the fully adjustable jump proof 4-wheel ball bearing hangers glide effortlessly with feather touch operation. Heavy gauge steel components are zinc trivalent plated for a quality appearance.

200MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200MP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

200MP Series Instalation Instructions

200MP Series Quick Reference Drawings

2-Door Opening Width Dimensions

4-Door Opening Width Dimensions

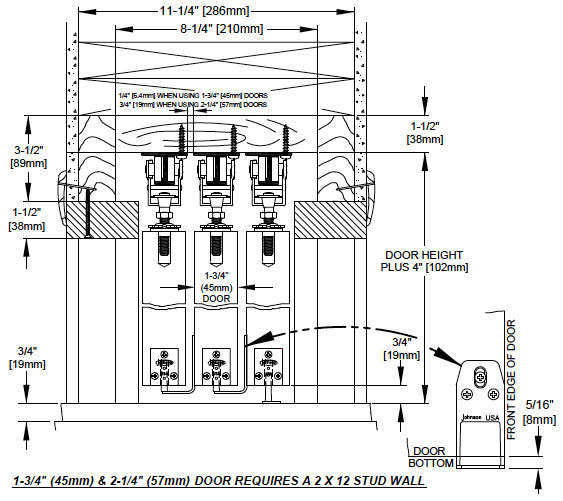

Opening Hight Dimensions

Trackless Door Guiding Detail

Track Dimensions

2054PLBG Multi-Door Catch

Track Spacing Detail

200MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200MP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.

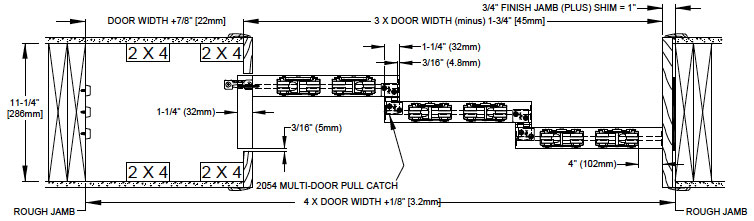

3-Door Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
20MP0962 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

1-3/4" [44mm]

Buy Now
20MP0963 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

2-1/4" [57mm]

Buy Now
20MP1202 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

1-3/4" [44mm]

Buy Now
20MP1203 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

2-1/4" [57mm]

Buy Now
20MP1442 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

1-3/4" [44mm]

Buy Now
20MP1443 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

2-1/4" [57mm]

Buy Now
20MP1922 View Contents

3-Door

192" x 3 (16' - 0" x 3)
[4877mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

1-3/4" [44mm]

Buy Now
20MP1923 View Contents

3-Door

192" x 3 (16' - 0" x 3)
[4877mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

2-1/4" [57mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

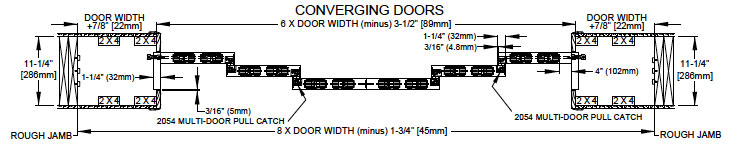

6-Door Converging Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
20MC0962 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

1-3/4" [44mm]

Buy Now
20MC0963 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

2-1/4" [57mm]

Buy Now
20MC1202 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

1-3/4" [44mm]

Buy Now
20MC1203 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

2-1/4" [57mm]

Buy Now
20MC1442 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

1-3/4" [44mm]

Buy Now
20MC1443 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

2-1/4" [57mm]

Buy Now
20MC1922 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

1-3/4" [44mm]

Buy Now
20MC1923 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

2-1/4" [57mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
