2610SC Soft-Close Wall Mount Sliding Door Hardware

  • 165lbs [75kg] Max Weight Per Door

  • 1" [25mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • Single Extrusion Box Rail Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Anodized Bronze or Mill Track Finish

  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

  • 2610SC Installation Instructions

The 2610SC is a versatile and easy to install soft closing wall mounted sliding door hardware set ideally suited for application where the installation of a Pocket Door is not structurally possible or not cost effective. Possible applications include closets, storage rooms or anywhere space is limited and a wall mounted sliding door will suit. The 2610SC is for interior use only and not suited for external applications.

2610SC Exceptional Features

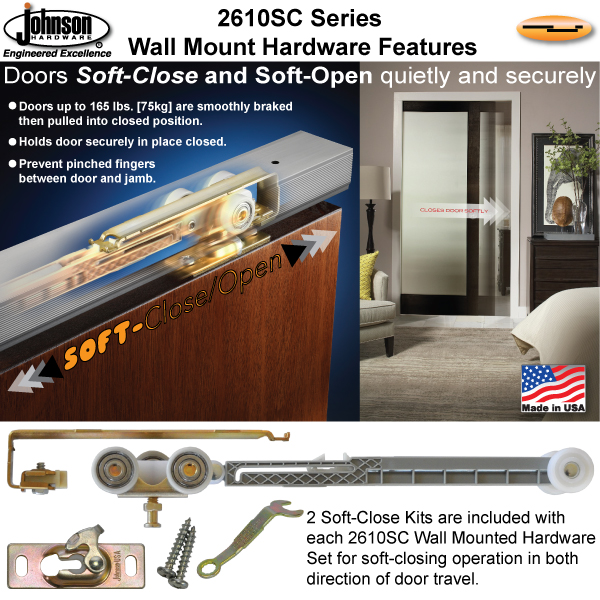

Soft-Open/Close

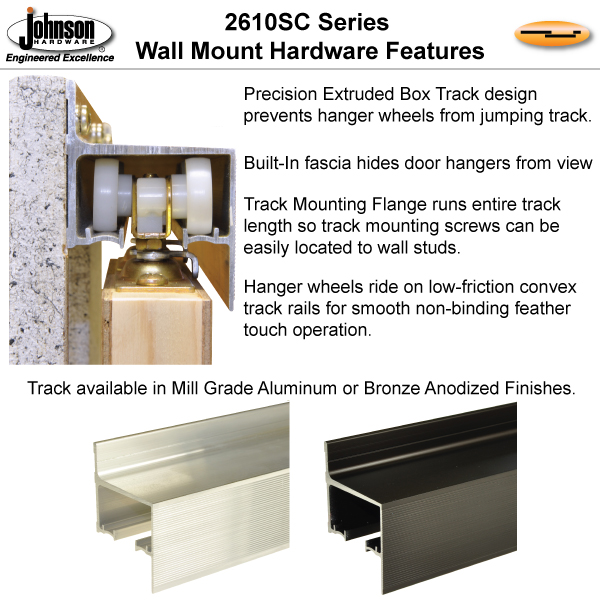

Fascia Track

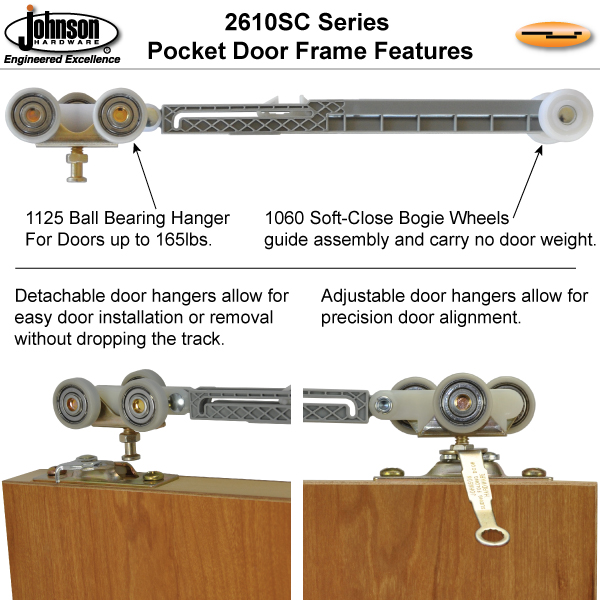

Ball Bearing Door Hangers

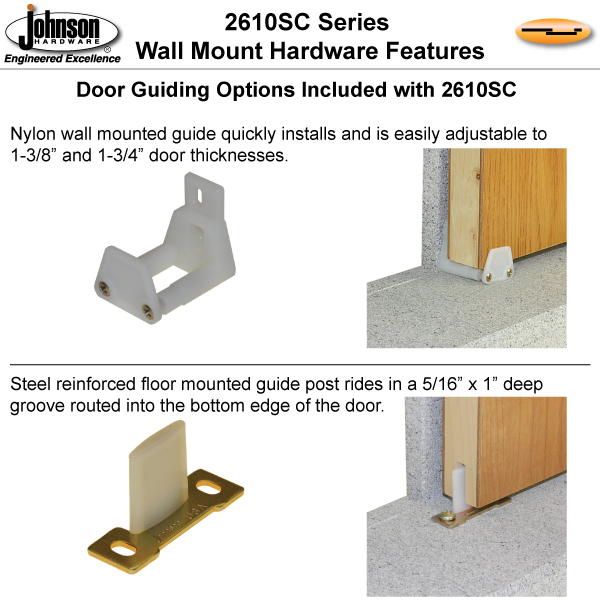

Included Door Guiding Options

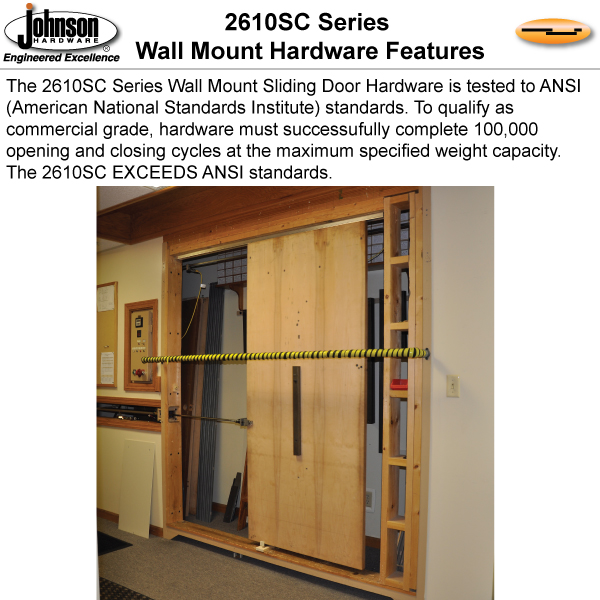

Tested Quality

Warranty

2610SC Hardware Sets

Soft operation wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths. Minimum 24" door width required for soft-close/open operation


How to order 2610SC Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut down.

The 2610SC is a versatile and easy to install soft closing wall mounted sliding door hardware set ideally suited for application where the installation of a Pocket Door is not structurally possible or not cost effective. Possible applications include closets, storage rooms or anywhere space is limited and a wall mounted sliding door will suit. The 2610SC is for interior use only and not suited for external applications.

2610SC Exceptional Features

Soft-Open/Close

Fascia Track

Ball Bearing Door Hangers

Included Door Guiding Options

Tested Quality

Warranty

2610SC Hardware Sets

Soft operation wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths. Minimum 24" door width required for soft-close/open operation


How to order 2610SC Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut down.

2610SC Series Installation Instructions

2610F Series Video

2610F Installation

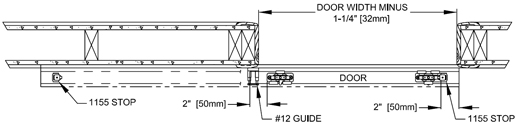

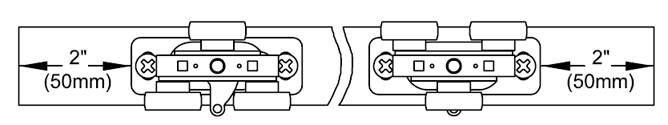

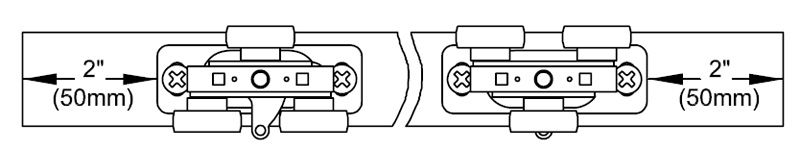

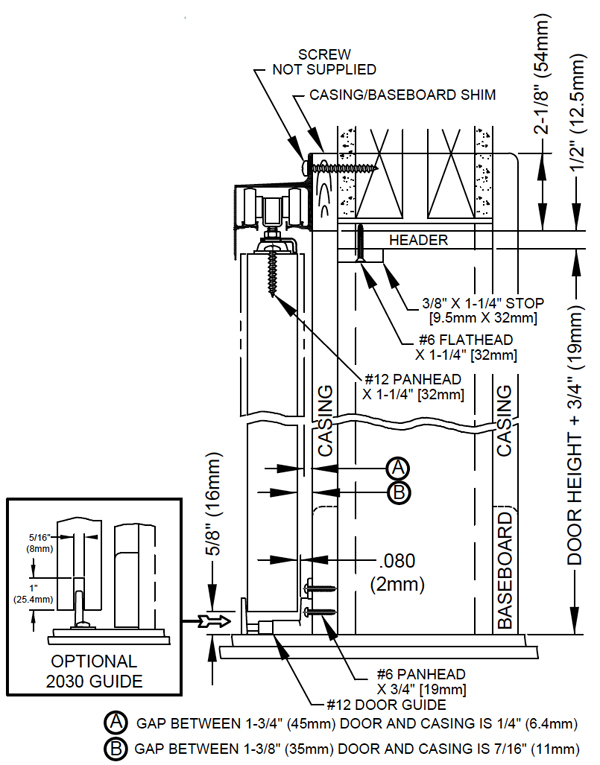

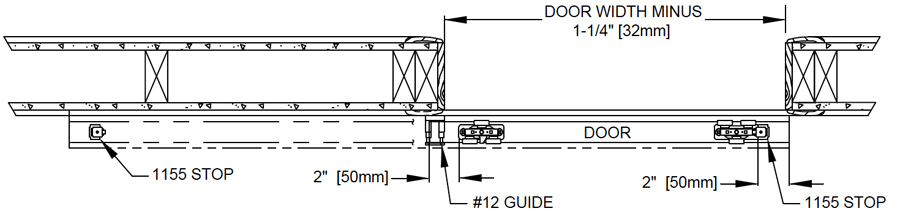

2610SC Series Quick Reference Drawings

2610SC Hardware Sets

Soft operation wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths. Minimum 24" door width required for soft-close/open operation


How to order 2610SC Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut down.

Products specifications
Product Grade Commercial/Residential
Application Interior Residential/Commercial
Max. Weight Per Door 165lbs. [75kg]
Max. Door Width 48" (4'- 0") [1219mm]
Max. Door Height Unlimited
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Hanger Type Top Mount
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated

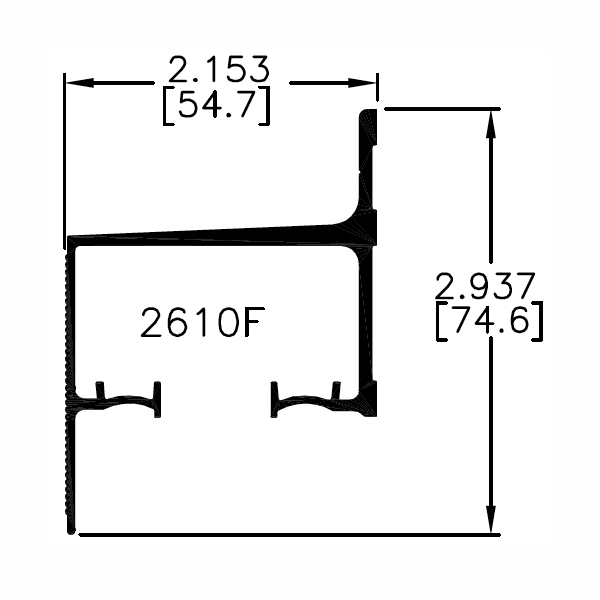

Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Grade Aluminum or Anodized Aluminum
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Track Finish Price | Qty. | Order
2610F48S View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Mill Aluminum

Buy Now
2610B48S View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Anodized Bronze

Buy Now
2610F60S View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Mill Aluminum

Buy Now
2610B60S View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Anodized Bronze

Buy Now
2610F72S View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Mill Aluminum

Buy Now
2610B72S View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Anodized Bronze

Buy Now
2610F96S View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Mill Aluminum

Buy Now
2610B96S View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Anodized Bronze

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

2-Door Converging Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Track Finish Price | Qty. | Order
2610S242 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

Mill Aluminum

Buy Now
261B242S View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

Anodized Bronze

Buy Now
2610S302 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

Mill Aluminum

Buy Now
261B302S View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

Anodized Bronze

Buy Now
2610S362 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

Mill Aluminum

Buy Now
261B362S View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

Anodized Bronze

Buy Now
2610S482 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

Mill Aluminum

Buy Now
261B482S View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

Anodized Bronze

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Product Grade Commercial/Residential
Application Interior Residential/Commercial
Max. Weight Per Door 165lbs. [75kg]
Max. Door Width 48" (4'- 0") [1219mm]
Max. Door Height Unlimited
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Hanger Type Top Mount
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Grade Aluminum or Anodized Aluminum
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
