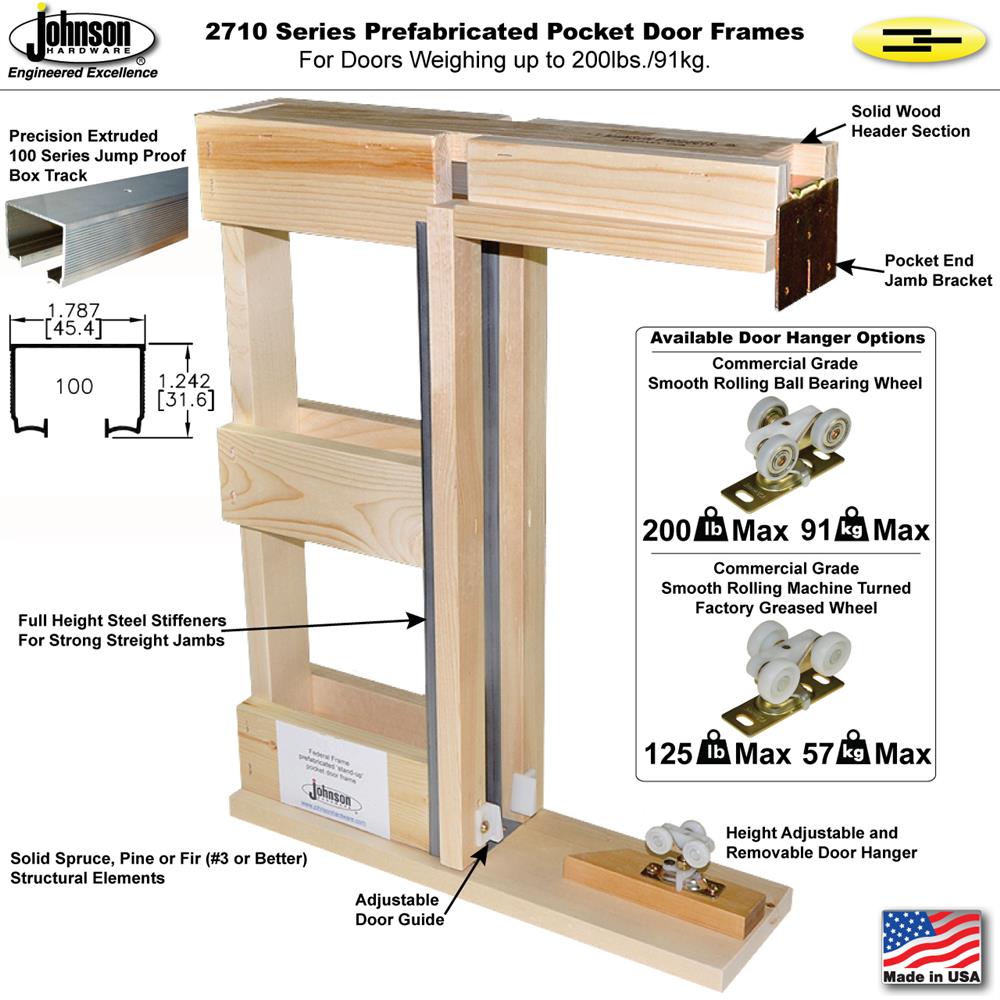

2710 Series Prefabricated Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door*

  • 36" [914mm] x 96" [2438mm] Max. Door Size

  • 1" [25mm] to 1-3/8" [35mm] Door Thickness*

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close Compatible W/ Optional Soft-Close Kit

  • *200lbs. [91kg] Doors Require 1125 Hanger



Ball Bearing Hanger Pocket Door Frames

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
27H02068 View Contents

24" (2'- 0")
[609mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27H02468 View Contents

28" (2'- 4")
[711mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27H02668 View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27H02868 View Contents

32" (2'- 8")
[813mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27H03068 View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27102070 View Contents

24" (2'- 0")
[609mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27102470 View Contents

28" (2'- 4")
[711mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27102870 View Contents

32" (2'- 8")
[813mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27103070 View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27102080 View Contents

24" (2'- 0")
[609mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27102480 View Contents

28" (2'- 4")
[711mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27102680 View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27102880 View Contents

32" (2'- 8")
[813mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

27103080 View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/8" [35mm]

200lbs. [91kg]

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Standard Wheel Hanger Pocket Door Frames

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
27102068 View Contents

24" (2'- 0")
[609mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

125lbs. [57kg]

27102468 View Contents

28" (2'- 4")
[711mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

125lbs. [57kg]

27102668 View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

125lbs. [57kg]

27103068 View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/8" [35mm]

125lbs. [57kg]

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664
