100PDSC Soft-Close Pocket Door Hardware

  • 165lbs [75kg] Max. Weight Per Door

  • 1" [25mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Soft-Open/Close Door Operation

  • Commercial Grade Top Hung Pocket Door Hardware

  • 100PDSC Installation Instructions

A versatile single track system designed and packed primarily for "on-the-job" construction of pocket doors, but also usable in combination with itself or other Johnson series tracks for special installations of sliding doors. Aluminum track with convex rails, jump proof three wheel hangers. Heavy gauge steel components are zinc plated for a quality appearance. Components are available in bulk for fabricators, as are fixtures for assembly of pocket door frames.





100PDSC Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths. Note: When used in a Pocket Door Application, 28" is the minimum door width possible with Soft-Close/Open (soft opperation in both directions), 20" is the minimum door width possible with Soft-Close only (soft opperation in single direction).


How to order 100PDSC Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

A versatile single track system designed and packed primarily for "on-the-job" construction of pocket doors, but also usable in combination with itself or other Johnson series tracks for special installations of sliding doors. Aluminum track with convex rails, jump proof three wheel hangers. Heavy gauge steel components are zinc plated for a quality appearance. Components are available in bulk for fabricators, as are fixtures for assembly of pocket door frames.





100PDSC Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths. Note: When used in a Pocket Door Application, 28" is the minimum door width possible with Soft-Close/Open (soft opperation in both directions), 20" is the minimum door width possible with Soft-Close only (soft opperation in single direction).


How to order 100PDSC Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

100PDSC Series Installation Instructions

100PDSC Series Quick Reference Drawings

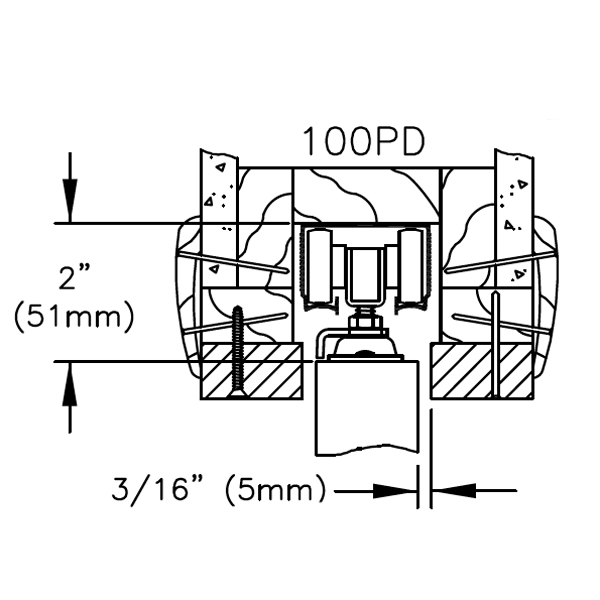

Hardware Dimensions

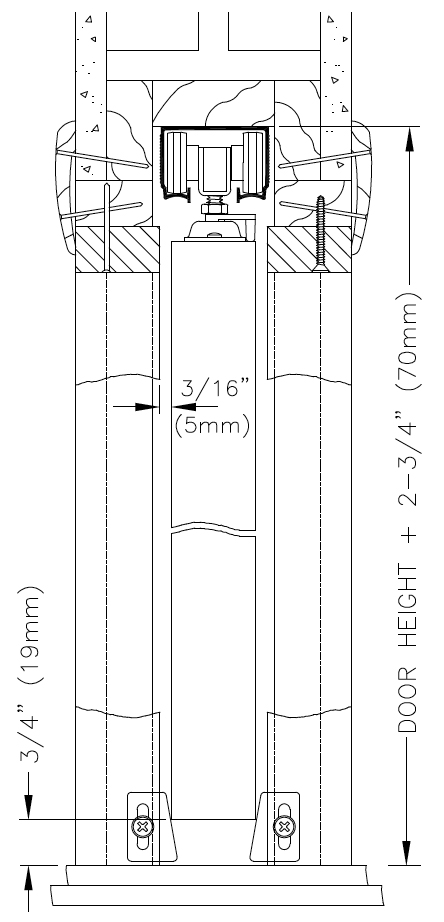

Opening Height Dimensions

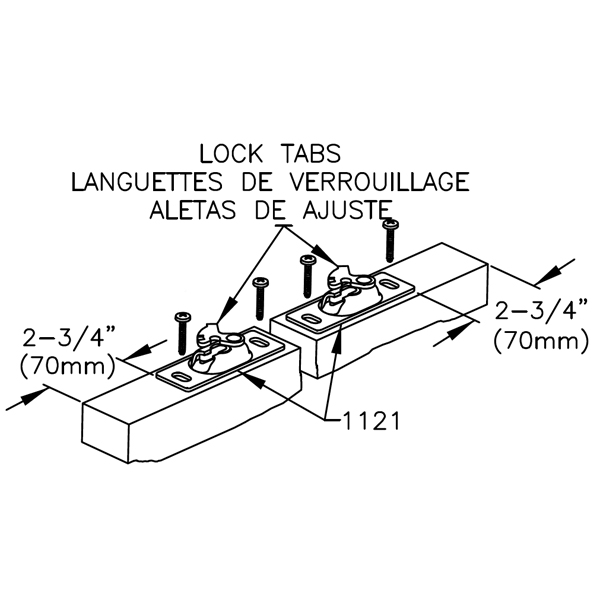

Hanger Plate Placemet

Track Dimensions

Soft-Close Tab Installation Position

Soft-Close Installation

Soft-Close Min. Door Width

100PDSC Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths. Note: When used in a Pocket Door Application, 28" is the minimum door width possible with Soft-Close/Open (soft opperation in both directions), 20" is the minimum door width possible with Soft-Close only (soft opperation in single direction).


How to order 100PDSC Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Min. Door Thickness 1" [25mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount, Soft-Close
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Soft-Open/Close Hardware Sets Hardware Sets

Part No. Description /Contents Track Length Max. Door Width Max. Weight Per Door Price | Qty. | Order
100601SC View Contents

60" (5' - 0")
[1524mm]

30" (2'- 6")
[762mm]

165lbs. [75kg]

Buy Now
100721SC View Contents

72" (6' - 0")
[1829mm]

36" (3'- 0")
[914mm]

165lbs. [75kg]

Buy Now
100961SC View Contents

96” (8' - 0")
[2438mm]

48" (4'- 0")
[1219mm]

165lbs. [75kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!
