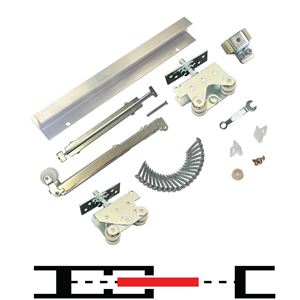

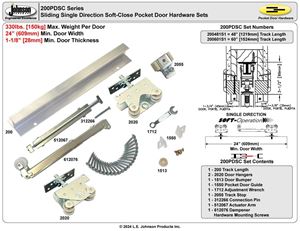

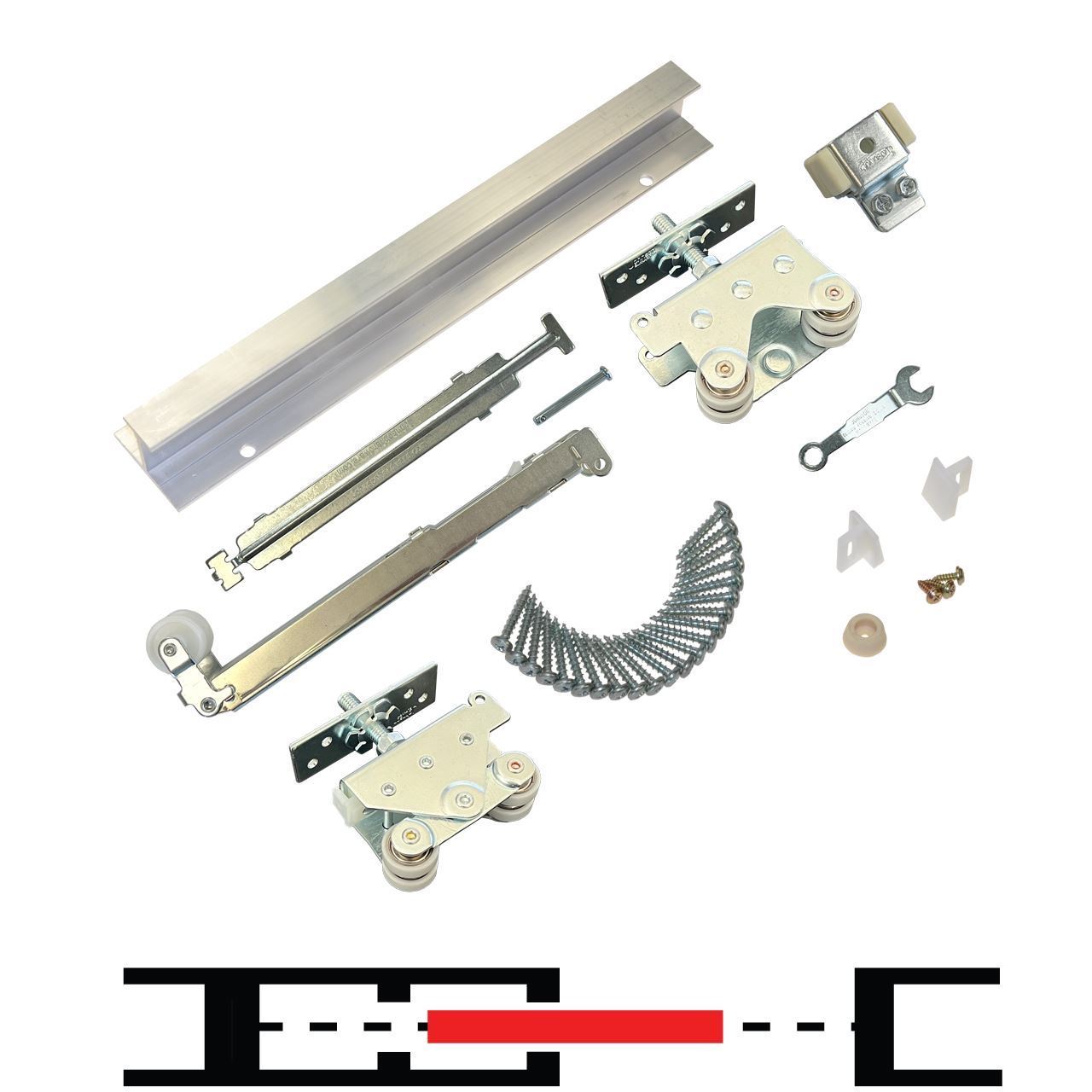

200PDSC 1-Door Single Direction Soft Close Hardware Set, 48" Track

330lbs [150kg] Max. Weight Per Door

48" (4'- 0") [1219mm] Track Length

24" (2'- 0") [609mm] Min. Door Width

1-1/8" [29mm] Min. Door Thickness

Commercial Grade Top Hung Pocket Door Hardware

Manufacturer part number: 200481S1

Buy Now

Products specifications

Country of Origin	U.S.A.
Track Material	6063T6 Extruded Aluminum
Track Finish	Mill Aluminum
Steel Components	12-14 Gauge
Steel Component Finish	Zinc Trivalent Plated
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Packaging	Single Packed, Reinforced Corrugated Box
Track Profile	I-Beam
Hardware Sets	Single Direction Soft Operation
Track Length	48" (4' - 0") [1219mm]
Max. Door Width	24" (2'- 0") [609mm]
Min. Soft Close Door Width	24" (2'- 0") [609mm]
Max. Weight Per Door	330lbs. [150kg]
Product Grade	Commercial/Residential
Application	Interior Residential/Commercial
Min. Door Thickness	1-1/8"
