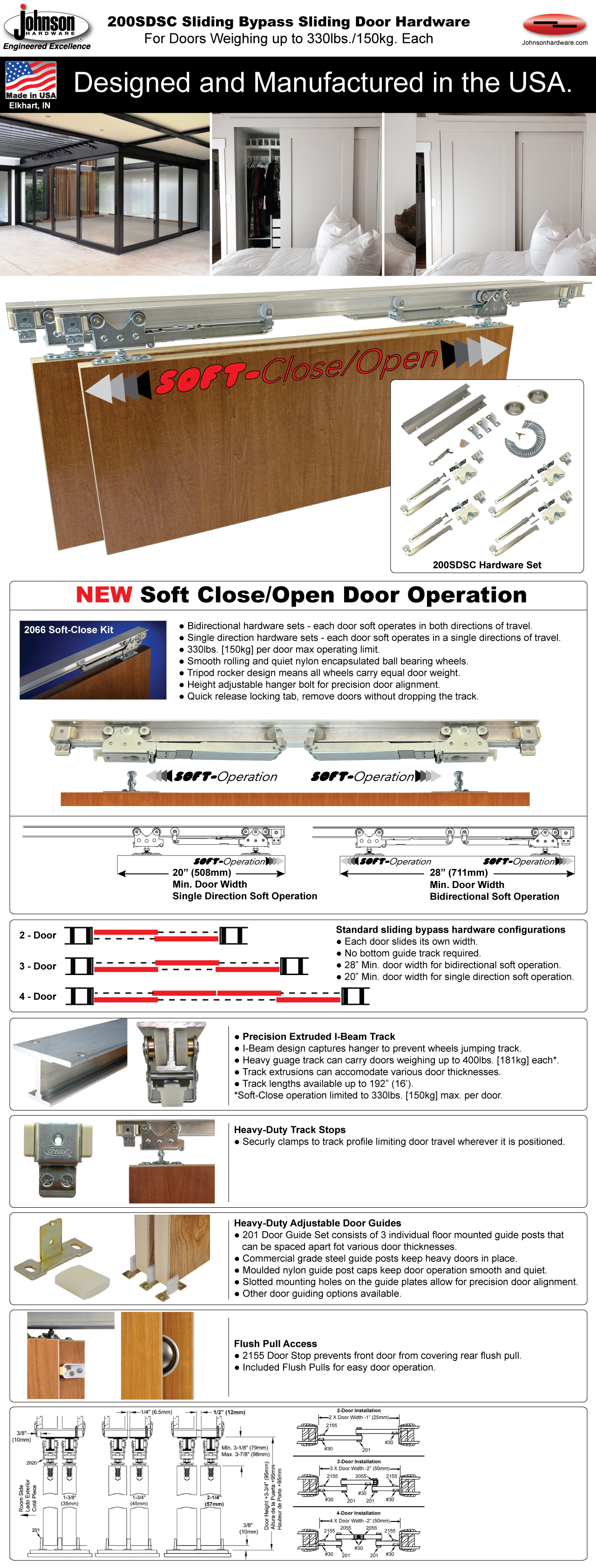

200SDSC Soft Operating Sliding Bypass Door Hardware

  • 330lbs [150kg] Max. Weight Per Door

  • 1-1/8" [29mm] Min. Door Thickness
  • Top Mount Hanger Type

  • Independent I-Beam Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • 200SDSC Installation Instructions

The 200SDSC is one of the finest residential/commercial grade sliding door hardware systems available. The 200SDSC is ideal for heavy architectural door applications where quality, smooth trouble-free operation and long life is a necessity. The 200SDSC can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

200SDSC Series Sliding Bypass Door Hardware

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.

  • Specify number of doors to slide 2, 3 or 4.
  • Door Width = Individual door width, all doors to be equal width.
  • Track Length = 2 or 3 or 4 x individual door width. Track can be cut down to accommodate narrower doors/openings.*
  • *28" min. door width to retain bidirectional soft operation, each door soft operates in both directions of travel
  • *20" min. door width to retain single direction soft operation, each door soft operates in a single direction of travel (choose direction during installation)
  • 24" (2'- 0") door width hardware sets are SINGLE DIRECTION SOFT OPERATION ONLY.
  • Custom 200SDSC configurations possible by ordering 200SDSC components by the piece.

The 200SDSC is one of the finest residential/commercial grade sliding door hardware systems available. The 200SDSC is ideal for heavy architectural door applications where quality, smooth trouble-free operation and long life is a necessity. The 200SDSC can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

200SDSC Series Sliding Bypass Door Hardware

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.

  • Specify number of doors to slide 2, 3 or 4.
  • Door Width = Individual door width, all doors to be equal width.
  • Track Length = 2 or 3 or 4 x individual door width. Track can be cut down to accommodate narrower doors/openings.*
  • *28" min. door width to retain bidirectional soft operation, each door soft operates in both directions of travel
  • *20" min. door width to retain single direction soft operation, each door soft operates in a single direction of travel (choose direction during installation)
  • 24" (2'- 0") door width hardware sets are SINGLE DIRECTION SOFT OPERATION ONLY.
  • Custom 200SDSC configurations possible by ordering 200SDSC components by the piece.
Products specifications
Application Interior Residential/Commercial
Max. Weight Per Door 330lbs. [150kg]
Min. Door Thickness 1-1/8"
Max. Door Height Unlimited
Series Track 200
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door 200SDSC Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Soft Operation Price | Qty. | Order
200482DS View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Single Direction

Buy Now
200602DS View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Bidirectional

Buy Now
200722DS View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Bidirectional

Buy Now
200962DS View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Bidirectional

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

3-Door 200SDSC Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Soft Operation Price | Qty. | Order
200723DS View Contents

24" X 3 (2' - 0" X 3)
[610mm X 3]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Single Direction

Buy Now
200963DS View Contents

32" X 3 (2' - 8" X 3)
[813mm X 3]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Bidirectional

Buy Now
2001063S View Contents

36" X 3 (3' - 0" X 3)
[914mm X 3]

106" x 2 (8' - 10" x 2)
[2692mm x 2]

Bidirectional

Buy Now
2001443S View Contents

48" X 3 (4' - 0" X 3)
[1219mm X 3]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Bidirectional

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door 200SDSC Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Soft Operation Price | Qty. | Order
200964DS View Contents

24" X 4 (2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Single Direction

Buy Now
2001204S View Contents

30" X 4 (2' - 6" X 4)
[762mm X 4]

120" x 2 (10' - 0" x 2)
[3048mm x 2]

Bidirectional

Buy Now
2001444S View Contents

36" X 4 (3' - 0" X 4)
[914mm X 4]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Bidirectional

Buy Now
2001924S View Contents

48" X 4 (4' - 0" X 4)
[1219mm X 4]

192" x 2 (16' - 0" x 2)
[4877mm x 2]

Bidirectional

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Application Interior Residential/Commercial
Max. Weight Per Door 330lbs. [150kg]
Min. Door Thickness 1-1/8"
Max. Door Height Unlimited
Series Track 200
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
